S Series Multi Split Type Air Conditioner
MODEL: CTKC25RVM / CTKC35RVM /
Outdoor Unit: MKC50RVM
Max Connectable Indoor Unit: 3
REFRIGERANT: R32
Your All-In-One Solution for Multi-Split Systems.
In most family homes, it is unusual for all indoor units to operate together. During the day, people tend to use shared spaces such as the family room. At night, they mainly use the bedrooms. This is why a single multi-split outdoor unit can be connected to indoor units which exceed it
Features
Super Powerful
Cools Faster than Conventional Models
30% Energy Saving
Daikin Smart Refrigerant Control
Daikin DC Inverter Compressor
All Voltage Guard
New Minimum & Maximum Fluctuation for Voltage Fluctuation
*Protected up to 440V / Can operate 130V – 264V
*Protected up to 440V / Can operate 130V – 264V

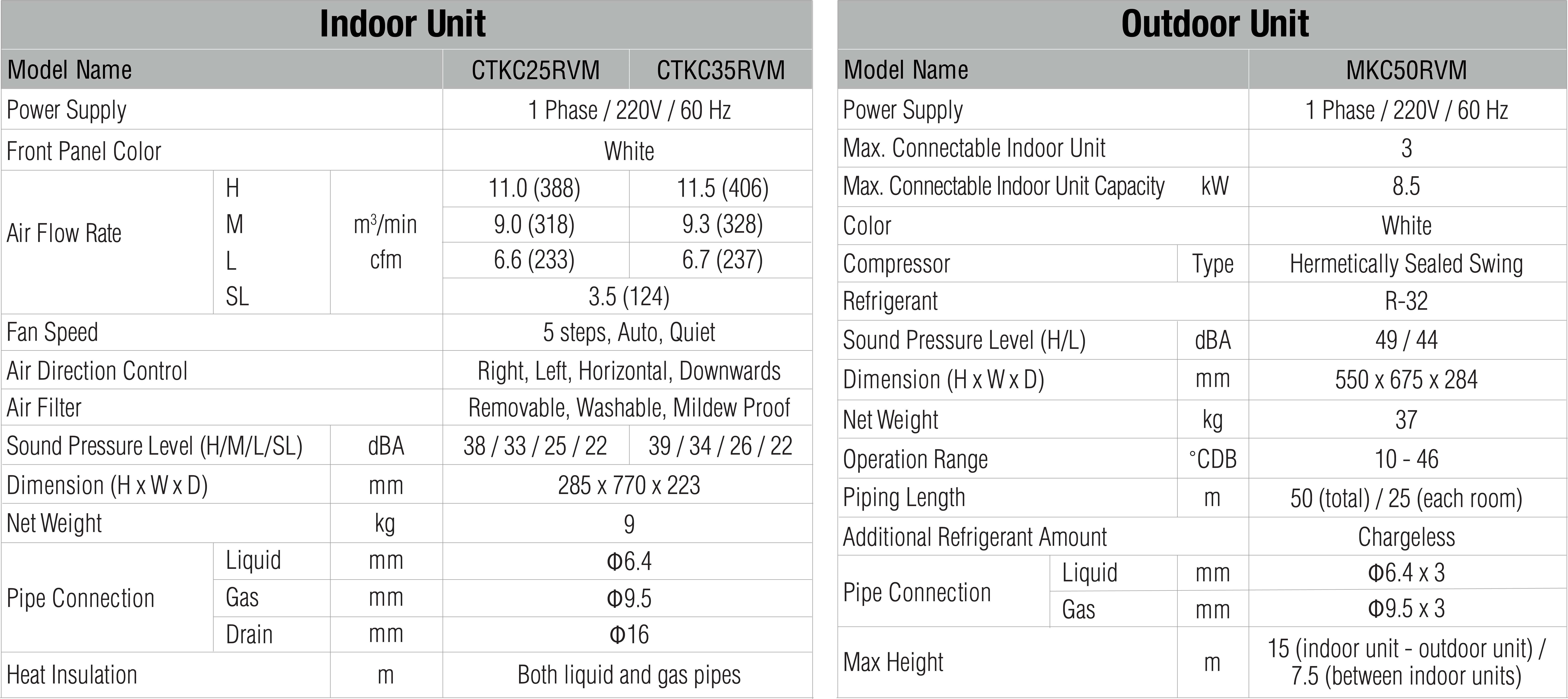

Multi S Specifications
Our commitment towards a greener tomorrow drives us to innovate and deliver eco-friendly air conditioning solutions with the use of R-32 that is the most balanced refrigerant available in the market in terms of environmental impact, energy efficiency, safety, and cost-effectiveness.
NX Series Multi Split Type Air Conditioner
MODEL: MKM65PVM / MKM80PVM / MKM95PVM / MKM105PVM
Max Connectable Indoor Unit: 4 / 4 / 4 / 5
REFRIGERANT: R32
Your All-In-One Solution for Multi-Split Systems.
- Single outdoor unit is connectable to up to ve indoor units.
- Compact and powerful system enables an outdoor unit to connect indoor units up to 205% of outdoor capacity.
- Two wall-mounted type & duct-connected type indoor units are connectable.
- Indoor units have a wide range of capacity classes from 2.5 to 7.1 kW.
- All systems use next-generation R-32 refrigerant.
- DC Inverter enables air conditioners to achieve high energy efficiency.
Features
Design Flexibility
Single outdoor unit is connectable to up to five indoor units with long piping length.
High Comfort Level
Finely adjusts capacity according to the air conditioning load for a comfortable cooling experience.
Energy Efficient
As the set temperature is reached, inverter operation adjusts to low capacity to maintain the room temperature.
Multi NX Specifications
Model Name | MKM65PVM | MKM80PVM | MKM95PVM | MKM105PVM | |
Power Supply | 1 Phase / 220V / 60 Hz | 1 Phase / 220V / 60 Hz | 1 Phase / 220V / 60 Hz | 1 Phase / 220V / 60 Hz | |
Number of Ports | 4 | 4 | 4 | 5 | |
Max. Connected | kW | 12.0 | 15.6 | 15.6 | 15.6 |
Casing Color | White | White | White | White | |
Compressor | Type | Hermetically Sealed Swing | Hermetically Sealed Swing | Hermetically Sealed Swing | Hermetically Sealed Swing |
Refrigerant | R32 | R32 | R32 | R32 | |
Sound Pressure Level | dBA | 48 | 48 | 48 | 53 |
Dimension | 695 x 930 x 350 | 695 x 930 x 350 | 990 x 940 x 320 | 990 x 940 x 320 | |
Net Weight | Kg | 49 | 49 | 83 | 83 |
Operation Range | ˚CDB | 10-46 | 10-46 | 10-46 | 10-46 |
Piping Length | m | 60 (total) 30 (for each room) | 70 (total) 30 (for each room) | 70 (total) 30 (for each room) | 80 (total) 30 (for each room) |
Additional Refrigerant Amount | Chargeless | Chargeless | Chargeless | Chargeless | |
Max Height | m | 15 (indoor unit - outdoor unit) / 7.5 (between indoor units) | 15 (indoor unit - outdoor unit) / 7.5 (between indoor units) | 15 (indoor unit - outdoor unit) / 7.5 (between indoor units) | 15 (indoor unit - outdoor unit) / 7.5 (between indoor units) |
Multi Split Series
Your All-In-One Solution for Multi-Split Systems.
