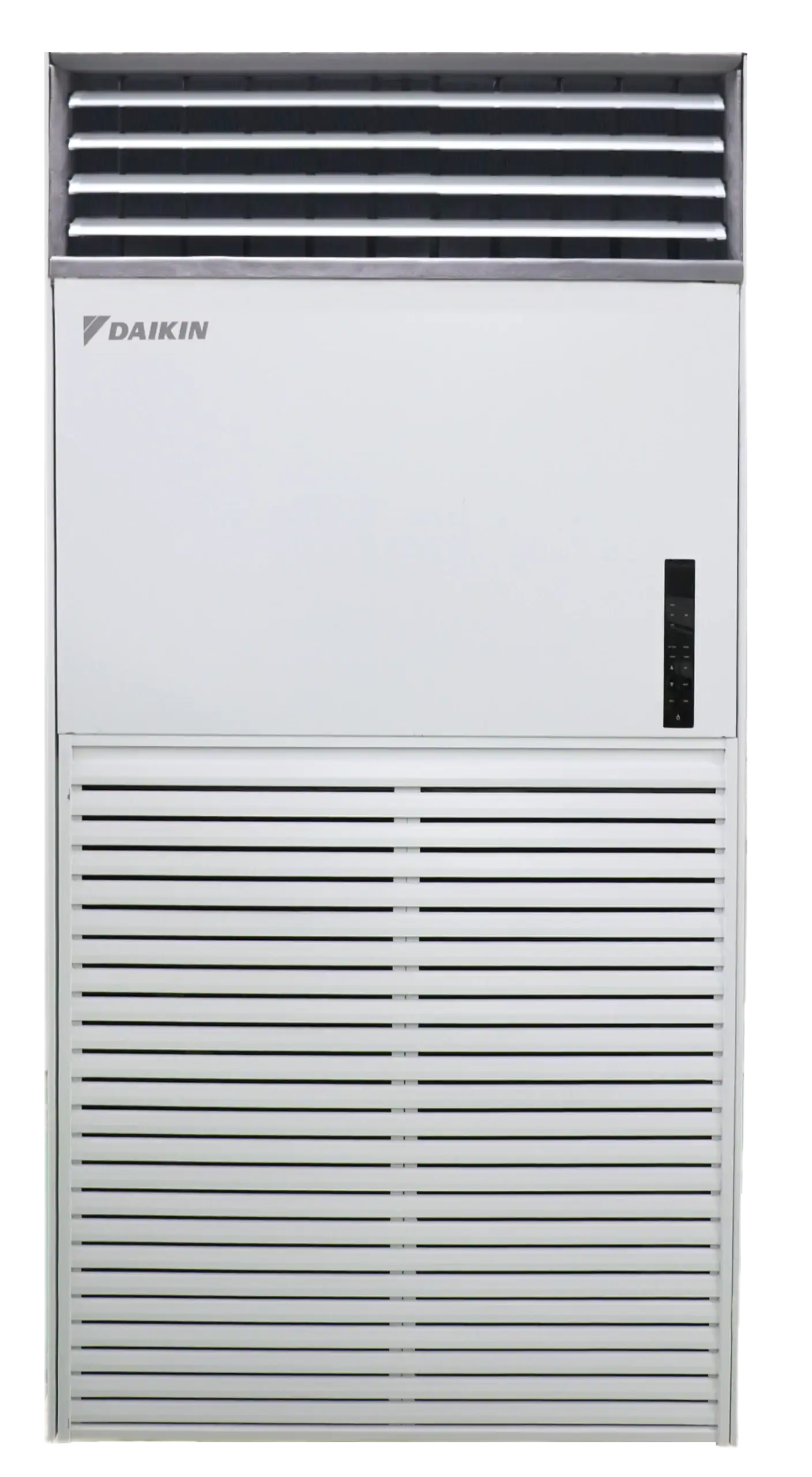

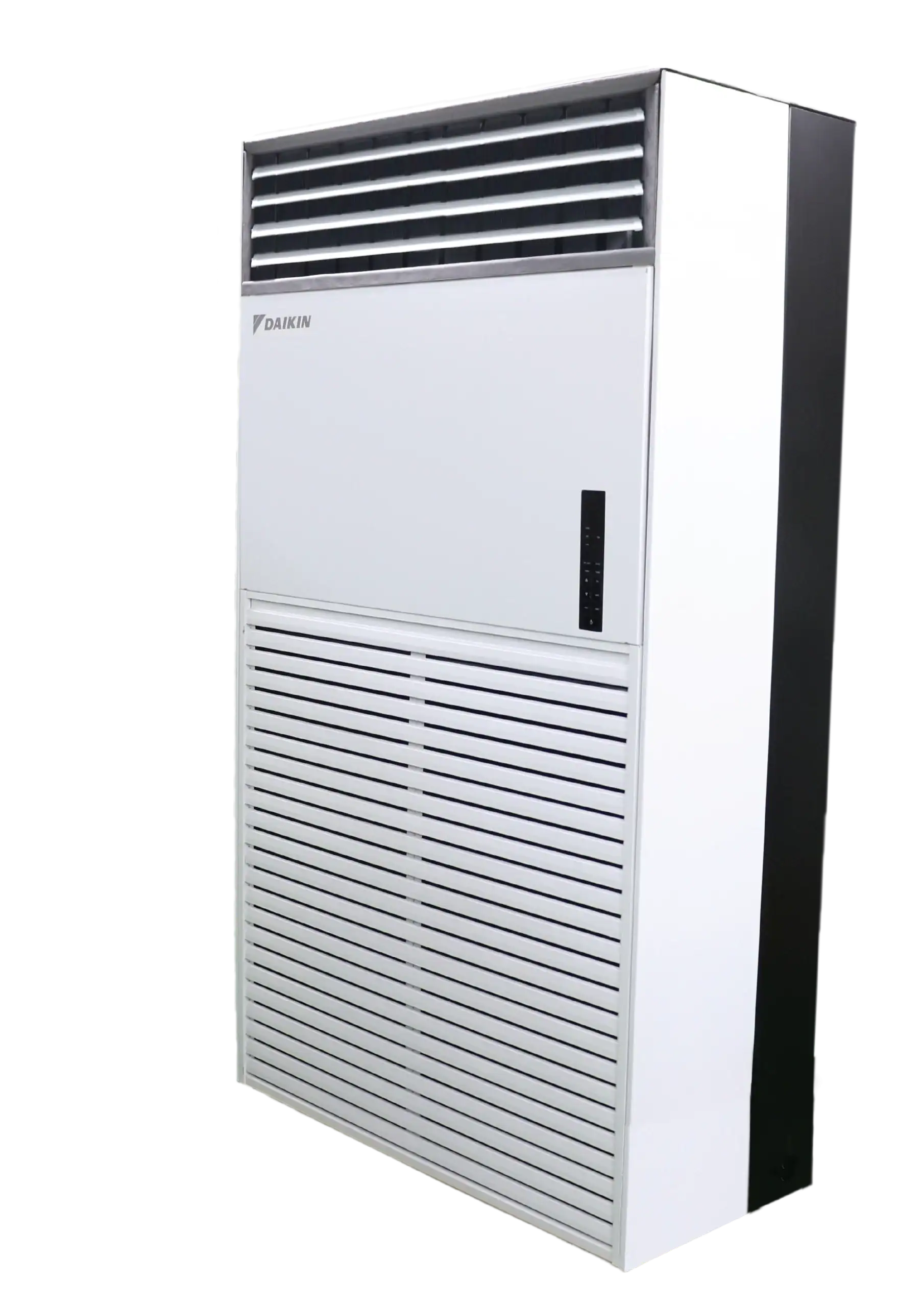

Large Floor Standing

MODEL: FVGR8PVL/FVGR10PVL/FVGR13PVL/FVGR15PVL
CAPACITY: 8HP / 10HP / 13HP / 15HP
REFRIGERANT: R-410A

COOLING ONLY [60Hz], 220V, Non-Inverter

Sleek, stylish, and modern to blend into any environment.

The ideal way to save space, our floor-standing units can easily be installed along a perimeter wall. The air distribution from these models will allow you to find the right balance for classrooms, hospital rooms, office hallways or similar spaces.

A non-ozone depleting refrigerant or fluid that transfers heat energy between the indoor and outdoor units of the air conditioning system.

Features

Far Airflow

• Air flow distance as far as 30m (size 12.5 HP) which is about the size of a basketball court.

High Durability

• Outdoor casing is made with adopted zinc coated heavy gauge galvanized steel & finished with a weather resistant polyester powder casing.

Design Flexibility

• Long piping & higher elevation makes it easier to install in any environment.

Daikin Advantage

High Durability

Outdoor Casing: Adopted zinc coated heavy gauge galvanized steel, with exterior surfaces finished with a weather resistant polyester powder casing, painted with white color to increase the durability

Phase Sequential Protection

Protect compressor from phase reversal or phase-missing especially during unit start up.

High & Low Pressure

Each refrigerant circuit has its own High and Low Pressure Switch for system protection against high pressure or low pressure in the system to ensure unit reliability.

Crankcase Heater

Crankcase heater is provided with each compressor system to prevent refrigerant migration and mixing with compressor oil when the unit is off.

Drain Pump (Optional)

The unit has a space below the fan to allocate drain pump (depending on drain pump size).

Daikin-Optional-Drain-Pump-for-Large-Floor-Standing

Commercial Applications

Large Floor Standing is suited to be installed in:

Technical Specifications

Temperature Control by Inverter and Non-Inverter Compressors (Cooling)

Model Name	FVGR8PVL	FVGR10PVL	FVGR13PVL	FVGR15PVL
Cooling Capacity	23.5 kW	29.3 kW	35.5 kW	44.8 kW
Energy Efficient Ratio	3.00 W/W	3.00 W/W	2.95 W/W	3.00 W/W
Dimensions (HxWxD)	1,947mm x 959mm x 500mm	1,947mm x 959mm x 500mm	1,947mm x 1,129mm x 500mm	1,947mm x 1,279mm x 500mm
